Product Specifications | |
Product number：GTJD648XGST6-M-SFP | Input voltage: AC/DC: 110-240V, supports built-in overcurrent 4.0A protection |
Product ports: 6 10G optical ports + 3 card slots Cards can be 16G optical, 16G electrical, 8G optical and 8 electrical | Dimensions: 442x325x44mm (length x width x height) |
Management port: 1 console port | Total Weight:<7Kg |
Reset button: 1 button to restore factory settings | Power consumption:<72W |
Switching capacity：4.8Tbps | Port aggregation: support static aggregation and dynamic aggregation |
Packet forwarding rate: 1624Mpps | Port mirroring: supports many-to-one port mirroring, with no limit on the number of mirror source ports |
MAC address: Support 64K MAC address table; support automatic update, two-way learning | Loop protection: support loop detection/loop avoidance |
Working temperature: -40~70℃ | Ring network protocol: Support industrial-grade ring network protocol ERPS |
Storage temperature: -40~85℃ | Port flow control: support half-duplex based on back pressure control; |
Working humidity: 10%~90% without condensation | Port speed limit: Support full-duplex based on PAUSE frame; |
Storage humidity: 5%~95% without condensation | Network cable sequence: Support Auto-MDIX function, automatically identify straight-through network cables and crossover network cables |
IP Routing | Support port-based input/output bandwidth management Support static routing; Support dynamic routing RIP, RIPng, OSFP, OSPFv3; Support VRRP (Virtual Routing Redundancy Protocol) |
VLAN: | Supports up to 4096 VLANs; Supports 802.1Q standard VLAN; Supports QinQ Supports Voice VLAN, MAC VLAN, IP VLAN; |
QOS | SP (Strict Priority), strict priority round-robin algorithm; WFQ (Weighted Fair Queuing) weighted fair queuing; WRR (Weighted Round Robin), weighted priority round-robin algorithm; Random Early Detect (RED), random early detection algorithm; Weighted Random Early Detection (WRED), weighted random early detection algorithm; Head Of Line, anti-congestion mechanism; Best-Effort Service, best effort service; First come first served, first come first served algorithm; 802.1p port queue priority algorithm; Cos/Tos, QOS marking; |
Storm suppression: Supports suppression of broadcast, multicast, unicast, etc. | Multicast control: support IGMP Snooping; support MLD Snooping |
Spanning Tree | Support STP spanning tree protocol; |
Negotiation Mode | Electrical port supports 10/100/1000M auto-negotiation |
Safety Features | The hardware supports IP ACL, MAC ACL, Vlan ACL, and supports ACL functions based on three and four layers; The hardware supports port-based IP+MAC binding; Supports IPSG; Supports ARP Detection function; Supports IEEE 802.1x port authentication; Supports Radius authentication; |

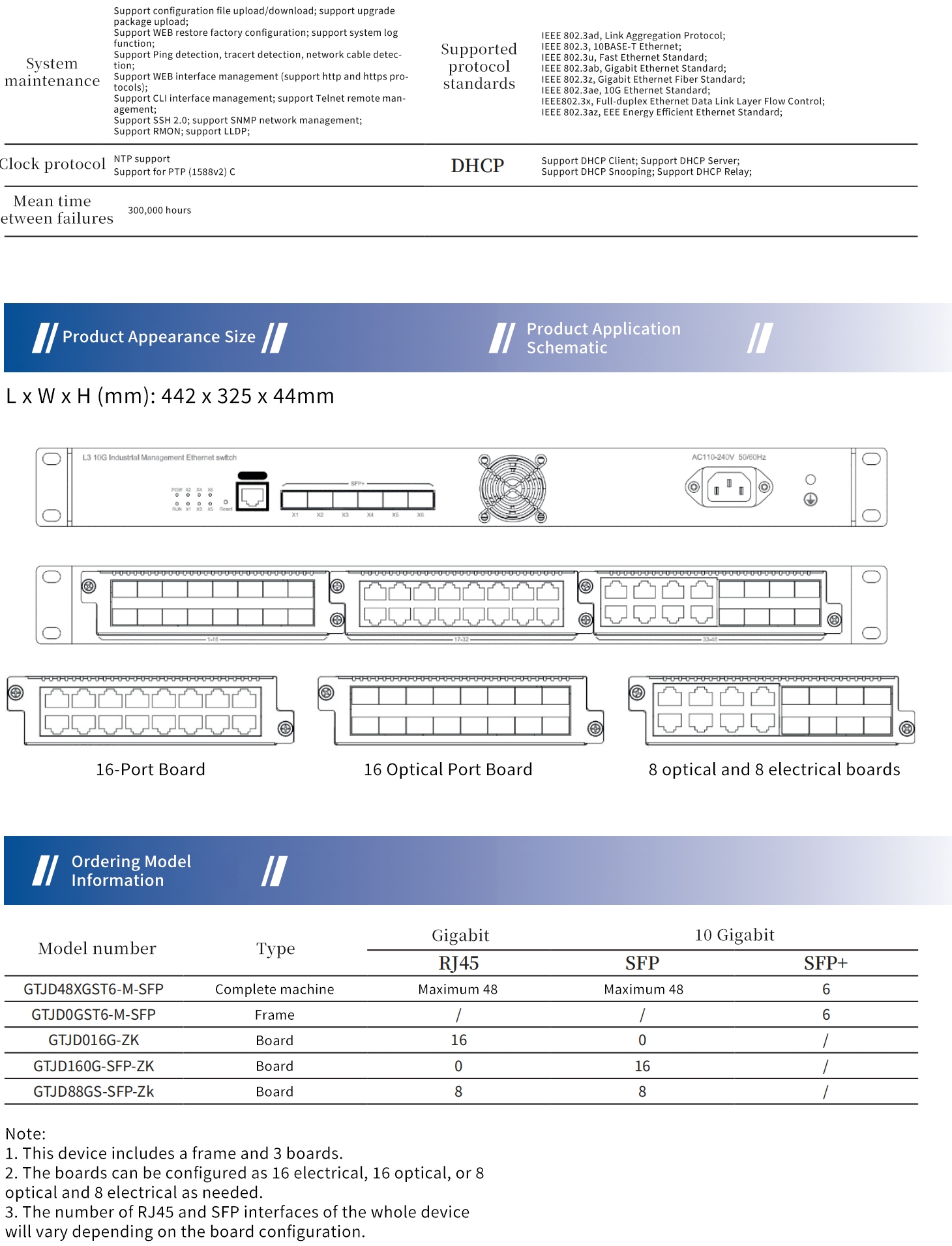

system maintenance | Support configuration file upload/download; support upgrade package upload; Support WEB restore factory configuration support system log function; Support Ping detection, tracert detection, network cable detection; Support WEB interface management (support http and https protocols); Support CLI interface management; Support Telnet remote management; Support SSH2.0; Support SNMP network management; Support RMON; Support LLDP; |
Support protocol standards | IEEE 802.3ad, Link Aggregation Protocol; IEEE 802.3.10BASE-T Ethernet; IEEE 802.3u, Fast Ethernet Standard; IEEE 802.3ab, Gigabit Ethernet Standard; IEEE 802.3z, Gigabit Ethernet Fiber Standard; IEEE 802.3ae, 10G Ethernet Standard; IEEE 802.3x, Full-duplex Ethernet Data Link Layer Flow Control; IEEE 802.3az, EEE Energy Efficient Ethernet Standard; |
DHCP | Support DHCP Client; Support DHCP Server; Support DHCP Snooping; Support DHCP Relay; |
Clock Protocol | Support NTP Support PTP (1588v2) |
Mean time between failures | 300,000 hours |
