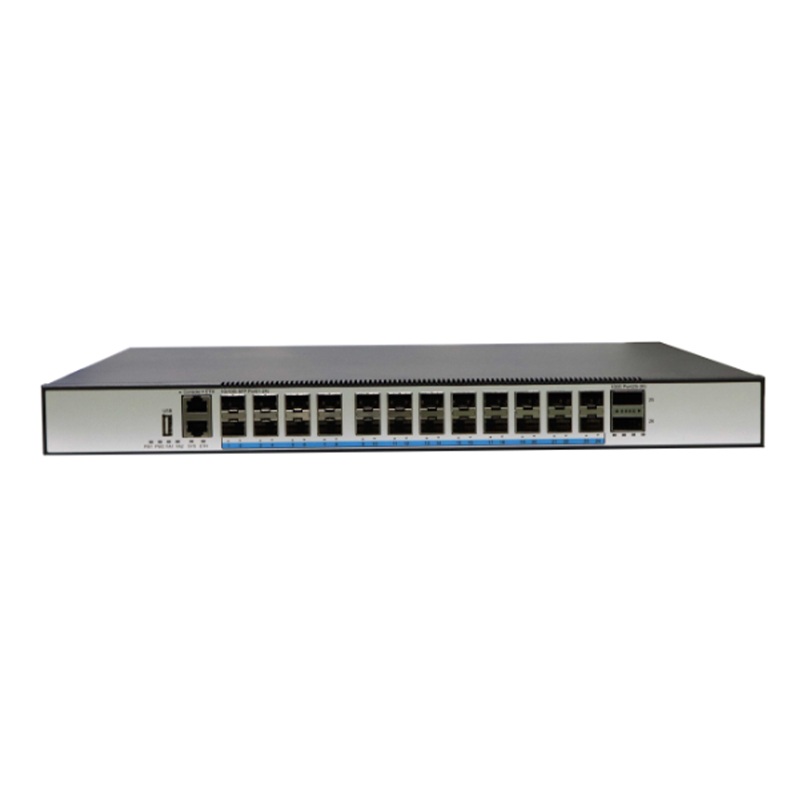

FTTD (R) Dedicated 100G Uplink Layer 3 Switch

Model:GTJD5300-24TF2Q

Consult

Features Technical Indicators Overall Dimension

GTJD5300-24TF2Q is a high-performance 10G core switch product, which can be widely used in the aggregation layer of large-scale IP metropolitan area networks of operators or the core layer of small and medium-sized metropolitan area networks, and the core of campus network and enterprise network. The whole device provides large-capacity, high-density, modular second/third-layer line-speed forwarding performance, rich business functions, powerful OoS guarantee and perfect security management mechanism, with telecom-level reliability design, can provide redundancy of power supply components, ensure the stability of the network core and the reliable operation of key services; with 880G switching capacity, it supports line-speed forwarding of all ports. The product has elastic stacking function, virtualizing multiple devices into one logical entity, which can not only meet the expansion of ports and switching capacity, but also realize the unified management, upgrade and maintenance of multiple devices. In view of the requirements of large data traffic and non-blocking transmission in data centers, the product can provide powerful caching capabilities, and support advanced cache scheduling mechanisms to ensure the maximum effective utilization of device cache capabilities. It is designed to meet the needs of next-generation enterprise networks, data centers and metropolitan area networks for high-density and high-bandwidth network applications. It can be applied to the Ethernet aggregation layer or access layer of network operators or campuses, and can also be used as the access layer of data centers and the core layer of small and medium-sized enterprises, and provide a variety of server access solutions for data centers.

Product Specifications
parameter		describe
Product number		GTJD5300-24TF2Q
Processor model		ARM A53 1.2Ghz
Flash capacity		4MB NOR+8GB(eMMC)
Memory Capacity		2GB
Port form		2410GE SFP+，2100GE QSFP28,Supports pluggable dual power supplies and pluggable dual fan slots
Other interfaces		One RJ45 management serial port One RJ45 management network port One standard USB port (Type-A)
Status Indicator		1000M	Link/Act	The connection is always on, and the data forwarding is flashing
		2500M	Link/Act	The connection is always on, and the data forwarding is flashing
		10G	Link/Act	The connection is always on, and the data forwarding is flashing
		25G	Link/Act	The connection is always on, and the data forwarding is flashing
		40G	Link/Act	The connection is always on, and the data forwarding is flashing
		4X10G	Link/Act	The connection is always on, and the data forwarding is flashing
Port switching capacity(bps)		880Gbps
Forwarding performance(PPS)		540Mpps
Power supply mode		AC:100-240V Supports 1+1 power supply redundancy design Supports pluggable power supply Full load ≤80W
Cooling method		Air cooling, front and rear wind direction
Size		44044390mm
Single unit bare weight		<6.0Kg
Working environment parameters		Operating temperature: -30C~70C Storage temperature: -40C~80C Relative humidity: 10%~90%, no condensation
Product Specifications
project		GTJD5300-24TF2Q Features
Layer 2 Features	MAC address table	Support MAC query and configuration (32K) Support manual configuration of MAC address aging time Support port MAC address learning function Support port MAC address quantity control


	VLAN Features	Support 4KVLAN Support Access/Trunk/Hybrid ports Support VLAN filtering Support Super VLAN Support port priority Support port PVID Support port-based receiving message type





	Spanning Tree	Support STP/RSTP/MSTP
	port	Support static and LACP dynamic port aggregation Support group-based port mirroring Support port storm suppression Support port shutdown configuration Support flow ctrl configuration Support MTU configuration Support speed/duplex configuration Support port statistics







	QoS	Support ACL, QACL, CoS Support advanced queue scheduling based on port or custom flow, Support 8 priority queues per port/flow, Provide multiple queue scheduling algorithms such as SP, WRR, SP+WRR, etc. Support message mirroring and message redirection for port or custom flow Support cpu-car and cpu-ratelimit Support anti-dos Support dscp map and cos map






	Layer 2 multicast	Support IGMPv1/v2/v3 Snooping Support IGMP Filter multicast filtering Support IGMP Fast leave to quickly leave the multicast group Support IGMP Proxy



Layer 3 Features	Layer 3 interface	Support VLAN interface Support Super VLAN interface
	Routing Protocol	Support IPv4/lpv6 static routing Support IPv4 routing protocols: Static/RIP/OSPF Support IPv6 routing protocol: RIPng/OSPFv3
	Layer 3 multicast	Support layer 3 static multicast (specification 64)
Reliable features	Loop protection	Support STP/RSTP/MSTP Support Loopback-detection port loopback detection
	Link protection	Support FlexLink link backup (link healing time <50ms) Support RSTP/MSTP link healing hardware acceleration capability (loop healing time <1s) Support LACP dynamic link aggregation (link healing time <
	Security	Support ARP security protection Support port isolation Support unknown source discard (support port configuration) Unknown unicast and multicast discard (support vlan-based configuration)
Maintenance Features	Network Maintenance	Supports Telnet-based port real-time traffic, utilization, and packet statistics Support RMON (Remote Monitoring) 1, 2, 3, 9 groups of MIB Support Ping and Traceroute
	Device Management	Supports command line interface (CLI), console port, Telnet, SSH and WEB configuration management Supports SNMP v1/v2/v3 management Supports one management port configuration Supports user hierarchical permissions Supports software online upgrades Supports system logs
