FTTD (R) Dedicated Managed Industrial Switches

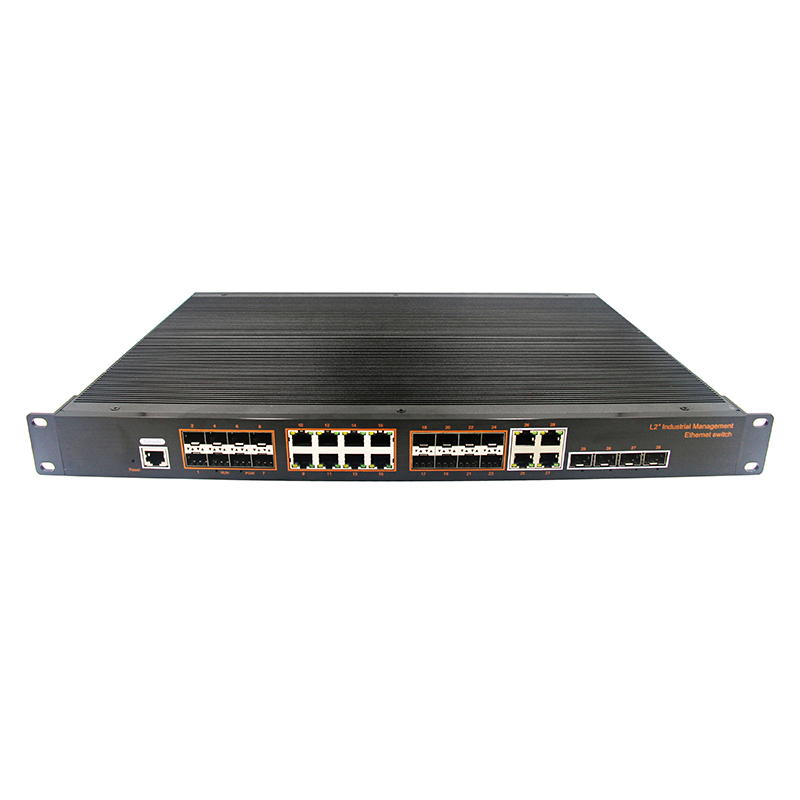

Model:GTJD1612GS-M-SFP
GTJD1612GS-M-SFP is a managed industrial Ethernet switch that complies with FCC, CE, and ROHS standards. It supports 16 Gigabit optical ports, 8 Gigabit electrical ports, and 4 optical-electrical multiplexer ports; it supports the Ethernet Layer 2 protocol required by industrial sites to ensure the stability of the communication network; this series of switches adopts low power consumption and fanless design to ensure no noise interference, while supporting -40~85℃ operating temperature and good EMC electromagnetic compatibility performance to ensure stable operation in harsh industrial environments, and provide safe and reliable solutions for the establishment of fast and stable network terminal access networks in industrial application fields such as factory automation, intelligent transportation, and video surveillance.

Product Specifications

product name

Managed Industrial Switches

Product number

GTJD1612GS-M-SFP

Port Description

8 RJ45 ports + 16 fiber optic ports + 4 Gigabit optical multiplexer ports

RJ45 port

10/100/1000M automatic detection, full/half duplex MDI/MDI-X adaptive

Fiber Optic Port

1000BaseFX port (SFP slot), 1000M self-adaptive

Ethernet Standards

IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab Logical Link Discovery Protocol、IEEE802.1D-Spanning Tree
Protocoll、IEEE802.1w-Rapid Spanning Tree Protocoll、IEEE802.1Q-VLAN Tagging、IEEE802.1p -Class of
Service, IEEE802.1X-Port Based Network Access Control, etc.

working environment

Operating temperature: -40~85C (-40~185℉)

Storage temperature: -40~85℃ (-40~185°F)

Relative humidity: 5%~95% (no condensation)

Industry Standard

IEC(EN)61000-4-6(RF conduction):3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(common mode conduction):30V cont.300V,1s

IEC(EN)61000-4-8

Shock:IEC 60068-2-27

Freefall:IEC 60068-2-32

Vibration: IEC 60068-2-6

Exchange attributes

Application level: Layer 2

Total backplane bandwidth: 256Gbps

Packet forwarding rate: 131Mpps

VLAN ID range: 1~4096

Multicast master number: 512

MAC address table size: 16K

Packet buffer size: 16Mbits

Switching delay: <5us

Power consumption: <45W

cyber security

Support IEEE 802.1x Support HTTP Support MAC address binding to prevent attacks

Management and maintenance

Support Console, Telnet, WEB management methods Support SNMPv1/v2/v3

power supply

Input voltage: AC 100-240V/DC36-72V

Access terminal: Phoenix terminal

Supports dual power redundancy

Supports built-in overcurrent 4.0A protection

Supports reverse connection protection

Mechanical properties

Housing: IP40 protection grade, metal housing

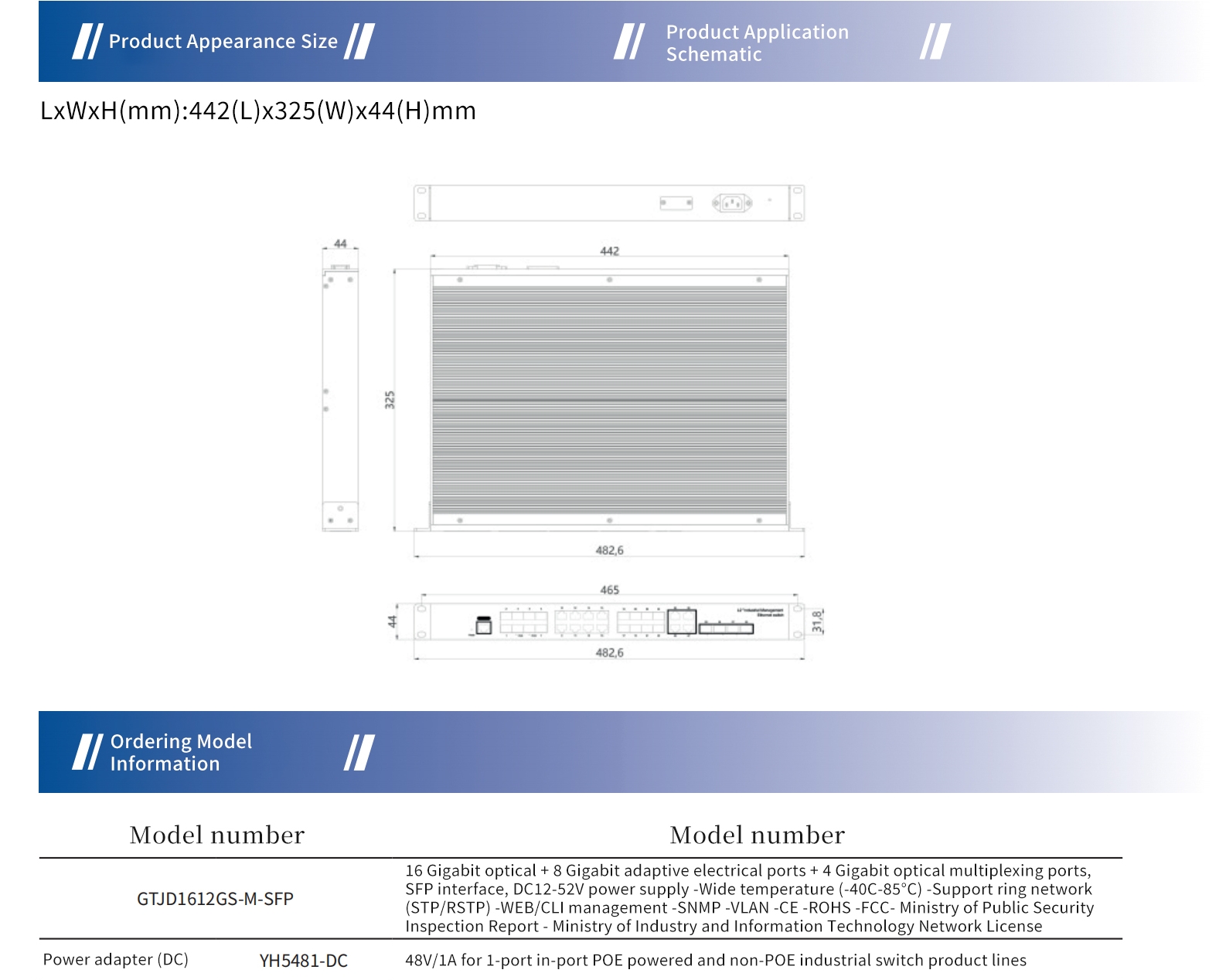

Dimensions: 442 (L)X325 (W)X44 (H) mm

Weight: 4.0 Kg

Installation: DIN rail installation, wall installation

Cooling method: natural cooling, no fan

Redundancy Technology

Support STP/RSTP/MSTP Support ERPS

Group plug technology

IGMP snooping

Exchange function

Support port speed limit, port aggregation and port flow control
Support port VLAN, IEEE 802.1Q VLAN
Support broadcast storm suppression

LED indicators

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Protection level

IP40

Certification

Certifications: CE, FCC, RoHS, ISO9001:2008
Network access license from the Ministry of Industry and Information Technology Inspection report from the Ministry of Public Security

Mean time between failures

300,000 hours

×
