Product Specifications | |

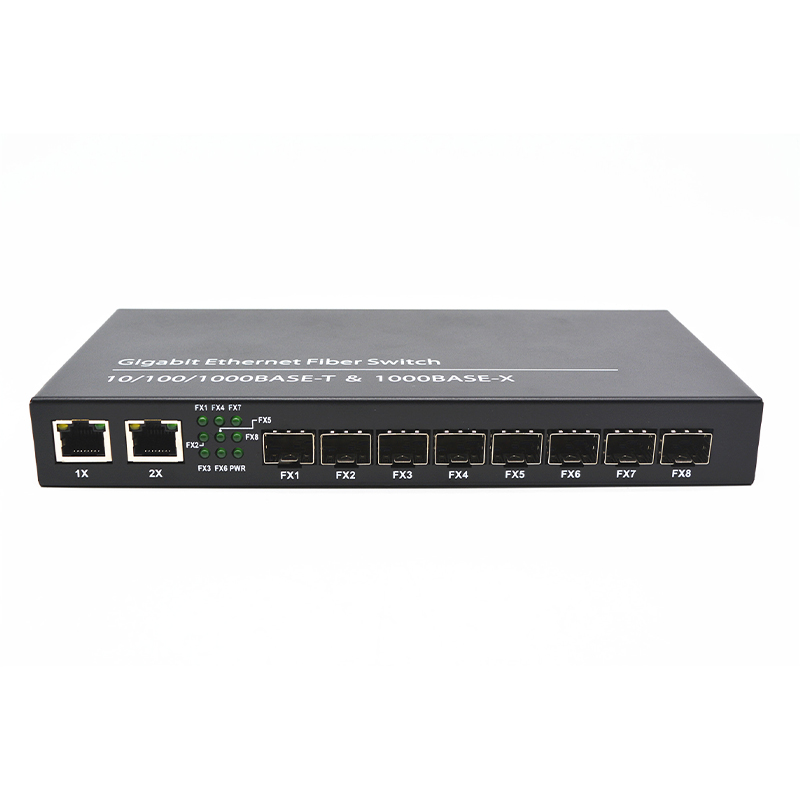

product name | Commercial-grade 1000M 8-fiber 2-electric switch |
Product number | GTJD0802-2GX8FX |
Network protocol | IEEE802.3 IEEE802.3x IEEE802.3i |
Port Features | 1000BaseFX port (SFP interface) |
Network port characteristics | 2 10M/100M/1000M adaptive network electrical ports, 8 1.25G optical fiber ports |
Forwarding Mode | 10M/100M/1000M BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
Backplane bandwidth | Store and forward (full line speed) |
Packet forwarding rate | 20Gbps |
MAC address table | 14.388Mpps |
Packet forwarding cache | 2K |
Indicator Lights | 1M |
Forwarding frame length | PWR、FX/Link、TX/Link、1000M、100M |
Electrical port transmission distance | 10BASE-T:Cat3,4,5 UTP(≤150 meter) |
Optical port transmission distance | Multi-mode dual-fiber ≤ 500 meters; single-mode single-fiber ≤ 3 kilometers - 120 kilometers (customized) |
Standby power consumption | ≤12W |
Operating temperature/humidity | -30~+80℃; 5%~90%RH without condensation |
Storage temperature/humidity | -40~+85℃; 5%~95%RH without condensation |
Input power voltage | 12V1A-12V2A |
Input power mode | DC |
Product Size | 217mm*115mm*25mm(L*W*H) |
Net weight/gross weight (kg) | 1.0Kg |
