AC Hardware Specifications | |
Device Information | Device information and status |
WAN port settings | Networking Protocol:DHCP，STATIC,PPPOE |
TCP/IP protocol support: IPV4, IPV6 | |
Multi-WAN load balancing (optional if the hardware supports multi-WAN) | |
Route Management: Static Routes | |
AP Mode | Thin AP and Fat AP Mode |
Basic parameters | SSID, channel, mode, bandwidth, password |
Extended Parameters | Power, maximum number of connections, roaming threshold |
other | Setup wizard, IP bandwidth control (QOS), DDNS, |
VPN penetration, network diagnostic tools | |
LAN port settings | TCP/IP protocol support: IPV4, IPV6 |
DHCP server: support dynamic, static IP, DHCP list | |
ARP management: ARP list, ARP binding | |
Firewall | DMZ, port forwarding, IP address filtering, MAC filtering, domain name filtering, firewall anti-attack |
AP control function | Control mode: centralized management/master-slave mode, device list |
Device grouping and configuration template management | |
Networking mode: master mode and bypass mode | |
Control protocol: self-developed management protocol, AP automatically discovers and manages AC | |
System Management | Username/password management, language management (Chinese and English), NTP service management, restore default configuration, system upgrade, system restart, system log, ping watchdog |
AC Hardware Specifications | |

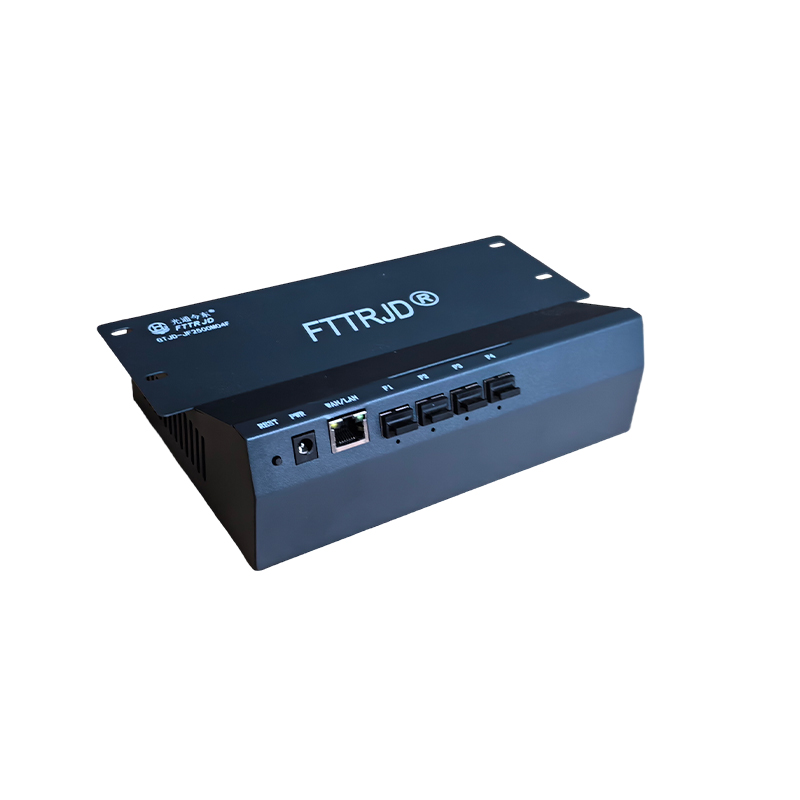

port | 1 2.5G RJ45 WAN port 1 2.5G optical WAN/LAN port 7/3 2.5G optical LAN ports |
Indicator Lights | Each 2.5G optical port: 2.5G/1G Link/Act |
Input Power | 12VDC/3A |
Cooling method | Fan, strong convection cooling |
Usage Environment | Working temperature: 0℃~40℃, working humidity: 10%~90%R non-condensing |
Typical load capacity | 100 units |
Dimensions | 226*132*45/60mm350*153*43mm |
Bbandwidth | Maximum bandwidth: 4Gbps; Recommended bandwidth: 2Gbps |
