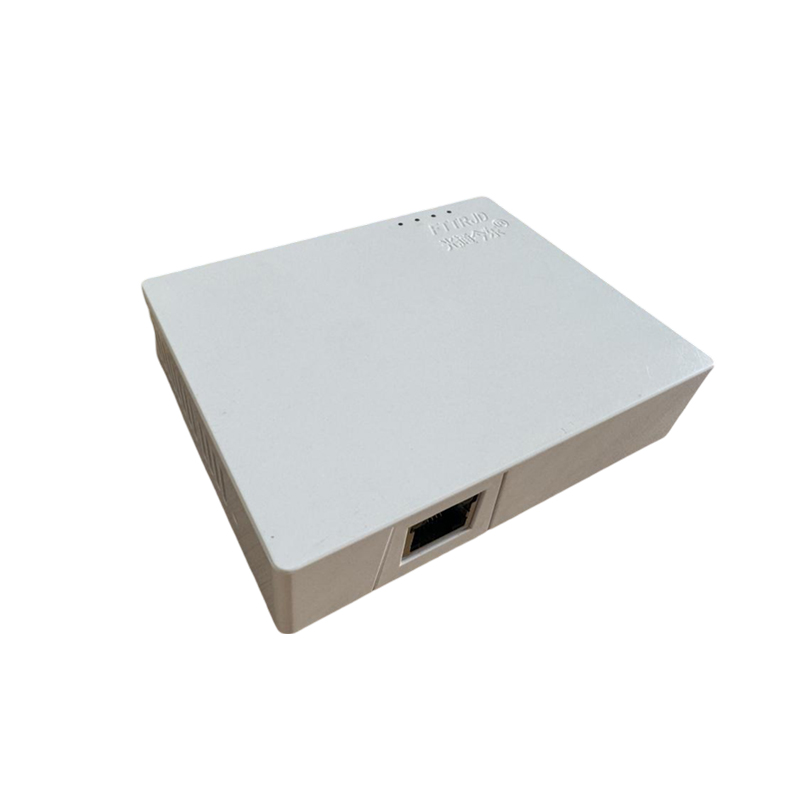

FTTD (R) Dedicated Optical Panel AP
Model:FTTRJD-R1
Size:105*83*25mm
FTTRJD-R1 is a Wi-Fi access point that can provide services for indoor high-density environments such as corporate offices, bars, and cafes. It supports 160MHz bandwidth, and its speed is nearly 3 times higher than that of Wi-Fi5, and twice that of ordinary Wi-Fi6 APs. The high-performance dual-core processor comprehensively improves the network load capacity, forwards data faster, and runs more stably for a long time. WiFi6 uses OFDMA (orthogonal frequency division multiple access) technology, allowing different users to share the same channel, allowing more devices to access, with shorter response time and lower latency. It supports the new generation of WPA3 wireless encryption protocol, and even simple passwords cannot be cracked, greatly improving the security of Wi-Fi. High-efficiency components and excellent hardware design ensure that the 11ax dual-band Gigabit AP can also use standard 802.3af power supply, making installation and deployment more convenient: it supports the management of controller hardware devices, unified configuration and management, automatic configuration distribution, and easier project management.
Device Information | Device information and status Software version |
WAN port settings | Networking Protocol:DHCP,STATIC,PPPOE |
TCP/IP protocol support: IPV4, IPV6 |
WAN load balancing (optional if the hardware supports multiple WANs) |
Route Management: Static Routes |
AP Control Parameters | AP mode: Thin AP and Fat AP mode |
Basic parameters: SSID, channel, mode, bandwidth, password |
Extended parameters: power, maximum number of connections, roaming interval value |
Other | Setup wizard, IP bandwidth control (QOS), DDNS, VPN penetration, network diagnostic tools |
Hardware specifications |
CPU | MT7981BA+7976CN CPU dual core 1.3GHz |
Storage | Flash:128MB DDR: 256MB |
Wired Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab |
Ethernet interface | 1 uplink 2.5Gbps fiber port, 1 10/100/1000Mbps adaptive WAN/LAN electrical port |
antenna | Built-in 2.4G*2; 5.8G*3 |
Button | Reset Button *1 |
Power supply | DC input 12V |
Indicator Lights | Power SYS/optical port/network port/2.4G/5G indicator light*1 |
Software Specifications |
MESH Networking | support |
Micro AC function | Support (When there is no AC in the network, the AP can be set as a micro AC. By logging into any AP, you can view and manage all APs in the network) |
Number of SSIDs | 4(2.4GHz) +4 (5GHz) |
Wireless encryption | Support encryption/non-encryption/hiding |
User Isolation | Terminal Isolation |
Wireless MAC address filtering | Support blacklist and whitelist |
VLAN Settings | support |
Transmit power setting | support |
Bandwidth Settings | support |
Channel Settings | Support (support automatic optimization of the best channel) |
Wireless client number limit | support |
Device Management | Chinese and English WEB management |
System log | support |
Reset | support |
Backup Configuration | support |
Import Configuration | support |
software upgrade | support |
Network Diagnostics | support |
Wireless specifications |
Wireless Standards | IEEE 802.11b/g/n/a/ac/ax |
Wireless rate | 2.4G:574Mbps、5G:2402Mbps |
Wireless frequency band | 2.4GHz&5.8GHz |
Wireless encryption method | l WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK |
Wireless specifications |
Application Environment | Working temperature: -10°℃~55°C |
Working humidity: 10%~90% RH non-condensing |
Storage temperature: -40°C~80°C |
Storage humidity: 5%~90% RH non-condensing |
