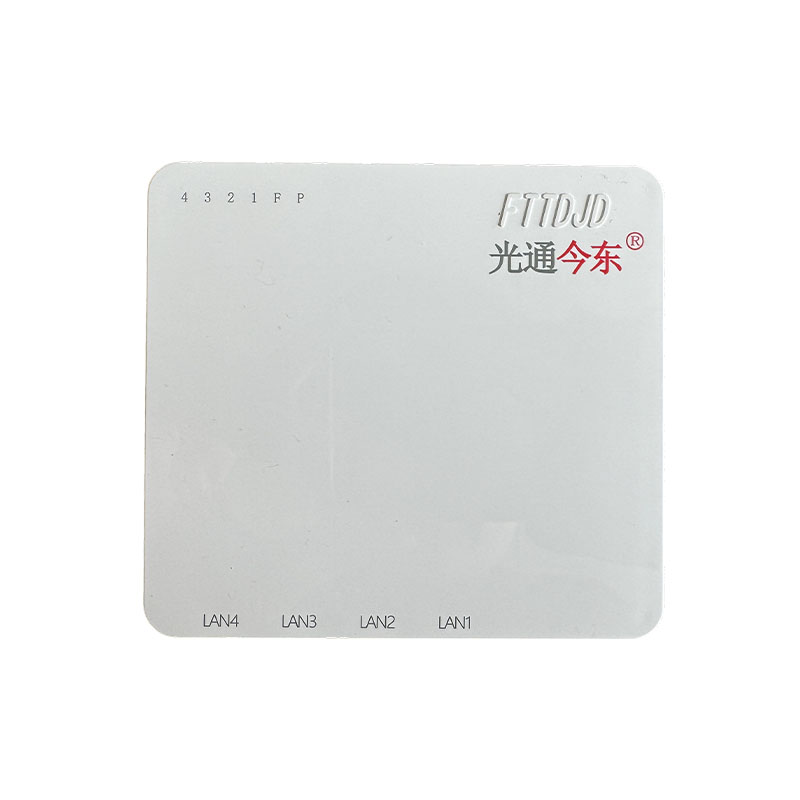

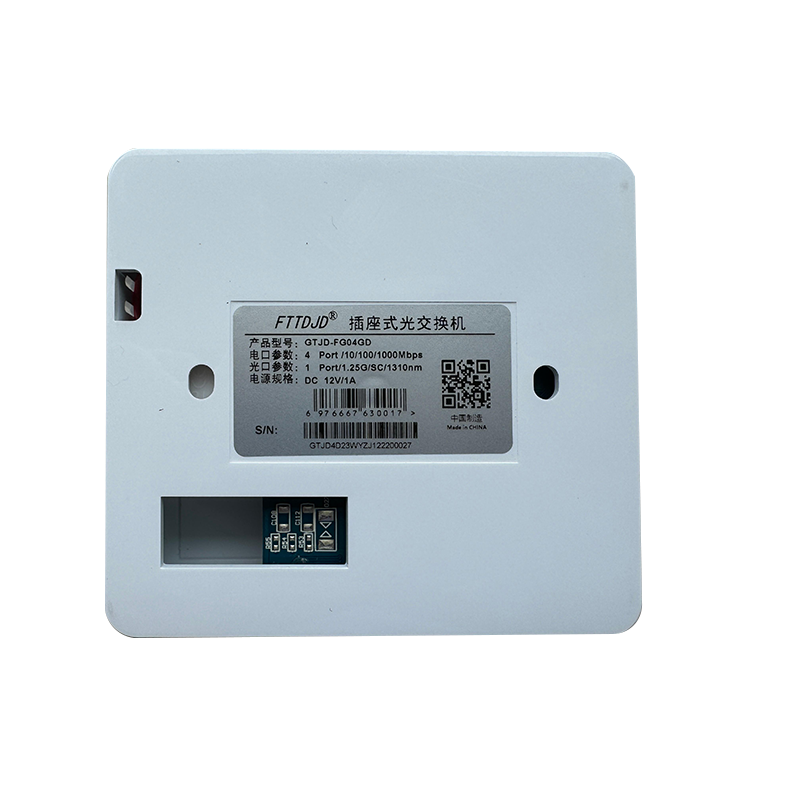

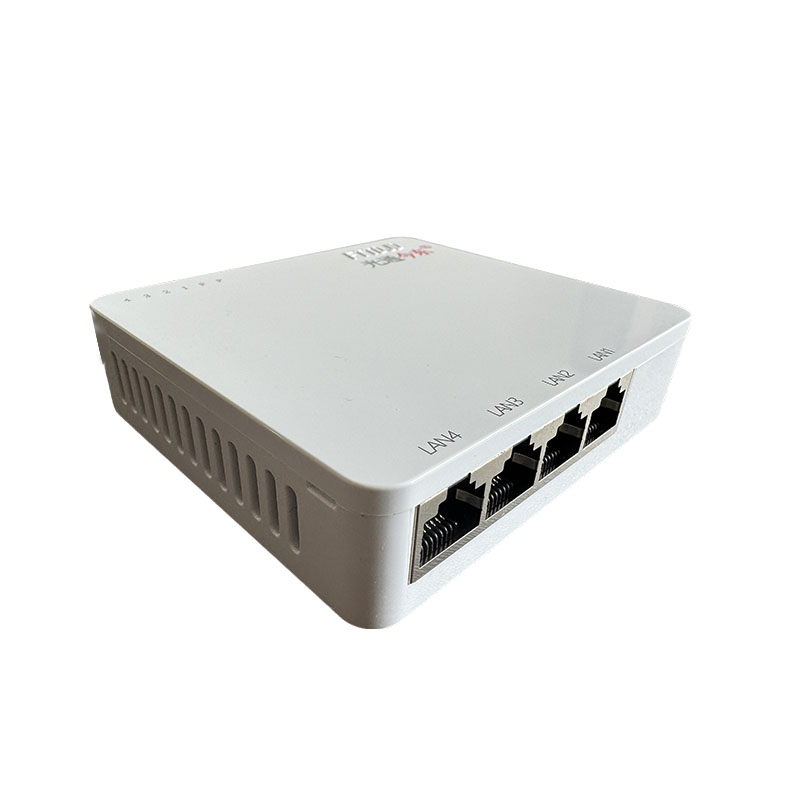

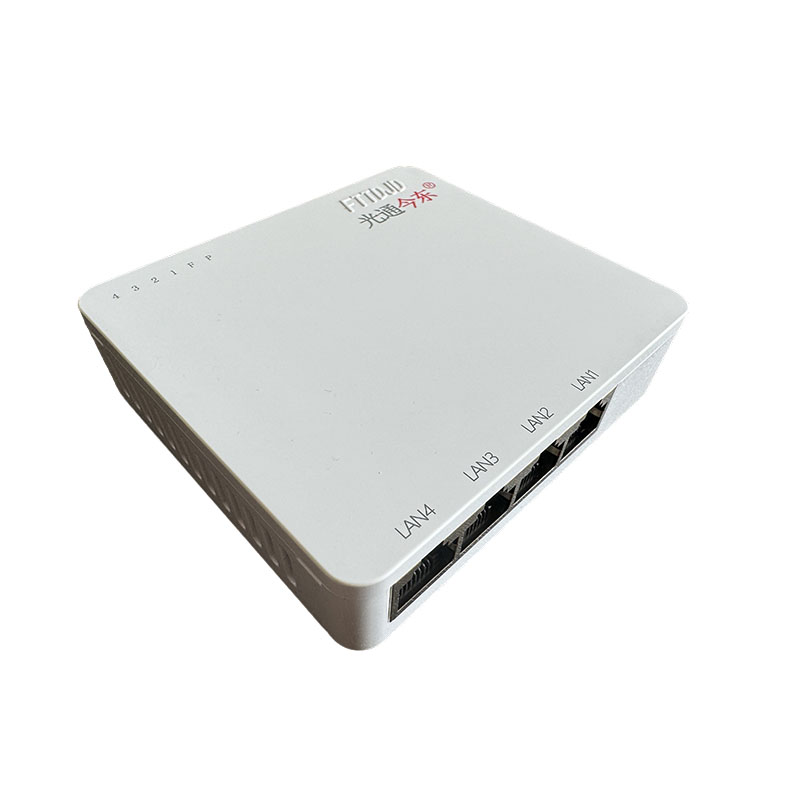

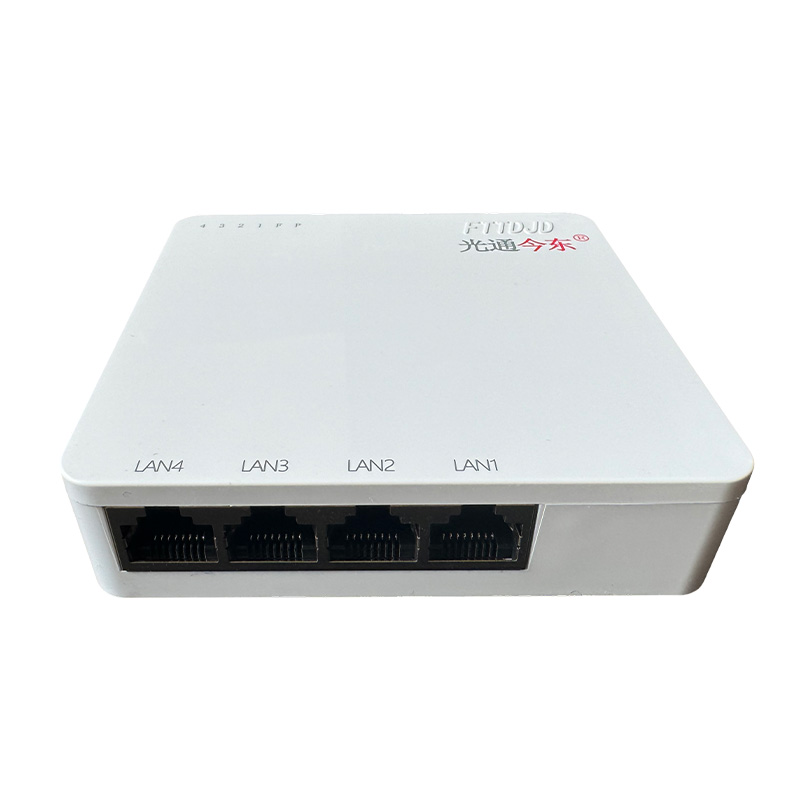

FTTD (R) Dedicated 1 Optical and 4 Electrical Optical Socket Transceiver
Model:Socket GTJD-FG04-GD
Size:86*94*24mm
Automatically adapt to 10Mbps, 100Mbps, and 1000Mbps environment, which is convenient for network upgrades; the device provides a built -in 1.25G/ SC/ 1310Nm light port, 4 10/100/ 1000Mbp power ports; supports full double workers or semi -dual -work mode, and has it with with a half -dual -worker mode, with it with with a half -dual -worker mode, with it with a half -dual -work mode, with it with a half -dual -work mode, and with it with a half -dual -worker mode, with it with a half -dual -worker mode, and with it Automatic negotiation capabilities; have storage forwarding buffer to effectively improve the transmission efficiency of end -connecting equipment; inside storage and forwarding mechanisms, support a variety of protocols, support IEEE 802.3, IEEE 802.iq (vlan); exchange capacity: 12G; MAC address table : 8K; power consumption: ≤3W; working power: DC 12V/1A; working temperature: -30 ℃ ~ 70 ℃; MTBF: 100,000 hours.
Product Parameters |
Switching capacity | 12G |
MAC address table | 8K |
Power consumption | ≤3W |
Working power supply | DC 12V/1A |
Working temperature | -30°C~70°C |
MTBF | 100,000 hours |
Installation method | 86 boxes fixed installation |
Dimensions | 86mm*94mm*24mm |
