Description

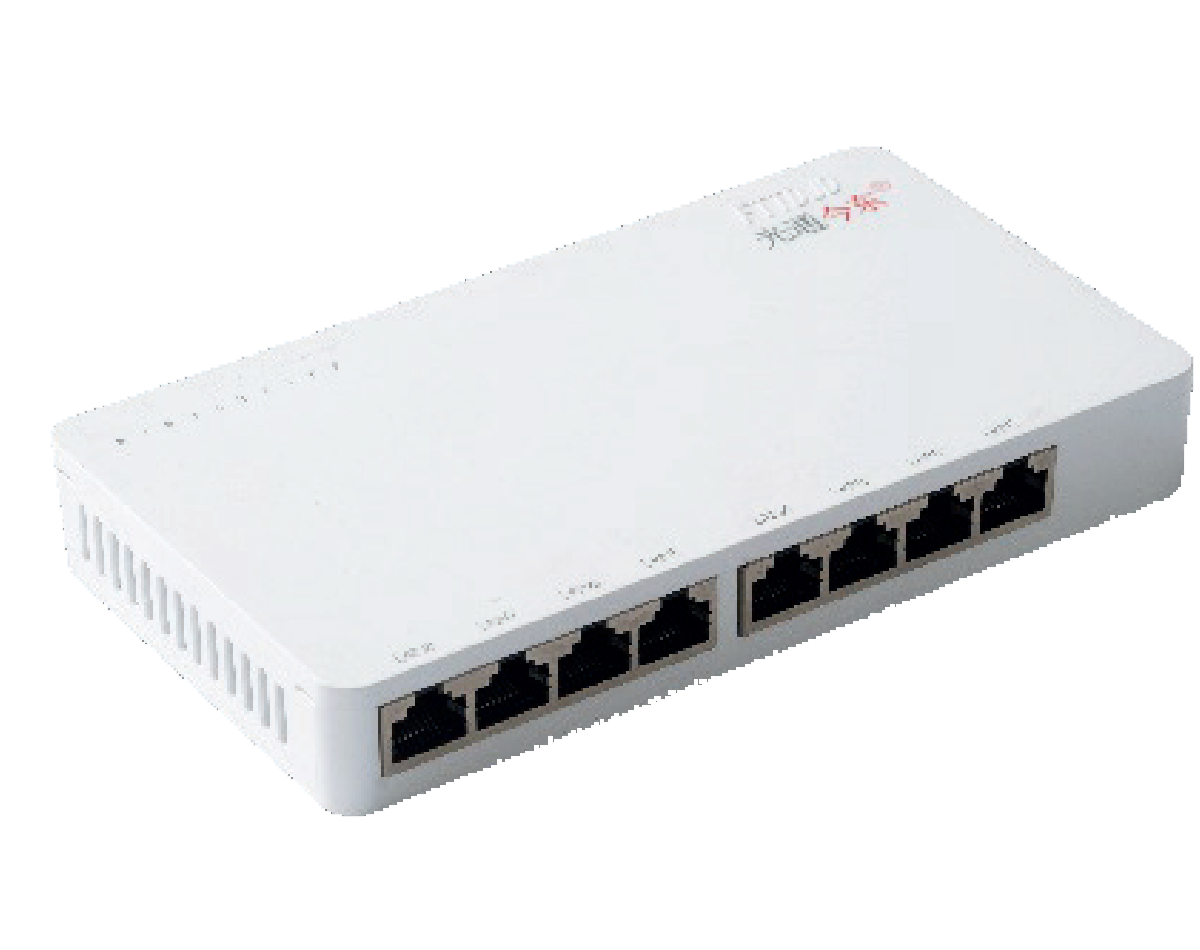

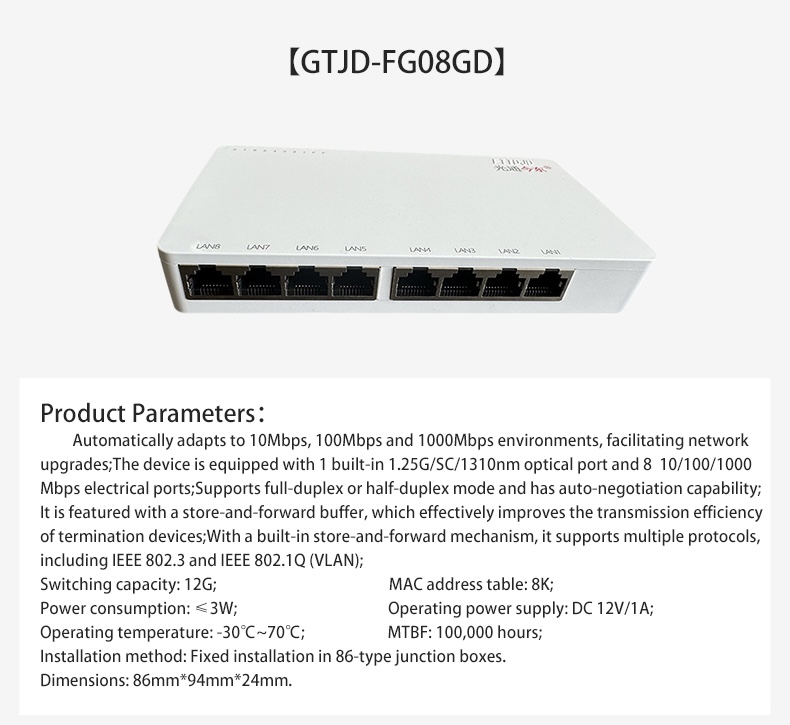

FTTD Optical Socket Transceiver (one optical and eight electrical)  typeGTJD-FG08GD

  • Automatically adapts to 10Mbps, 100Mbps and 1000Mbps environments, facilitating network upgrades;
  • The device is equipped with 1 built-in 1.25G/SC/1310nm optical port and 8  10/100/1000Mbps electrical ports;
  • Supports full-duplex or half-duplex mode and has auto-negotiation capability;
  • It is featured with a store-and-forward buffer, which effectively improves the transmission efficiency of termination devices;
  • With a built-in store-and-forward mechanism, it supports multiple protocols, including IEEE 802.3 and IEEE 802.1Q (VLAN);
  • Switching capacity: 20G;
  • MAC address table: 8K;
  • Power consumption: ≤3W;
  • Operating power supply: DC 12V/1A;
  • Operating temperature: -30℃~70℃;
  • MTBF: 100,000 hours;
  • Installation method: Fixed installation in 86-type junction boxes.
